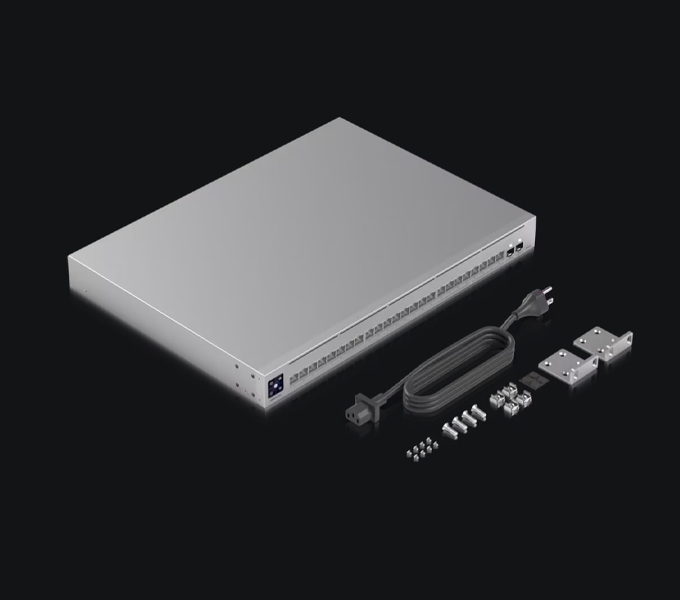

Ubiquiti Unifi Network Switch A 24-port, Layer3 Ether lighting™ switch with 2.5GbE (USW-Pro-Max-24-EU)
USW-018
----------------------------
- Ports: 24 × RJ45 Ethernet
*16 × 1GbE RJ45
*8 × 2.5GbE RJ45
- Uplink: 2 × 10G SFP+ Ports
- Layer: Layer 3 Managed Switch
- Switching Capacity: 112 Gbps
- Non-Blocking Throughput: 56Gbps
- Forwarding Rate: 83.3 Mpps
- Etherlighting™: Yes
(Port status & VLAN identification)
- Power Input: 100–240V AC
- Mounting: 1U Rackmount
- Display: 1.3" Touchscreen LCM
- Management: UniFi Net-Controller
- Dimensions: 442 × 325 × 44 mm
- Weight: 4.2 kg
- Warranty: 1 Year
-Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
*Port Layout:
-1 GbE RJ45: 16 (1G/100M/10M)
-2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
-10G SFP+: 2 (10G/1G)
-Redundancy: DC Power Backup
-Form Factor: Rack mount (1U)
-Etherlighting: YES
*Switching Capacity: 112 Gbps
-Total Non-Blocking Throughput: 56 Gbps
-Forwarding Rate: 83 Mpps
-Supported VLANs: 1,000
-MAC Address Table Size: 16,000
-IPv4 Static Routes: 256
-Packet Buffer Size: 1.5 MB
*Access Lists
-IPv4: 128
-MAC: 128
*Max. Power Consumption: 50W
*Power Method:
(1) Universal input, 100–240V AC, 50/60 Hz
(1) USP RPS DC input
-Power Input Method: AC input
-Power Supply: AC/DC, internal, 60W
*Weight
-Without mounting brackets: 4.2 kg (9.3 lb)
-With mounting brackets: 4.3 kg (9.5 lb)
Brand
Ubiquiti
