Ubiquiti UniFi (16) PoE+ / (8) PoE++ Switch Pro, 24-Ports (400w) (USW-Pro-24-POE)
USW-011
----------------------------
- Ports: 24 × 1GbE RJ45
*PoE: 16 × PoE+ (802.3af/at)
* PoE: 8 × PoE++ (802.3bt)
- Uplink: 2 × 10G SFP+ Ports
- Layer: Layer 3 Managed Switch
- Total PoE Budget: 400W
- Switching Capacity: 88 Gbps
- Non-Blocking Throughput: 44 Gbps
- Forwarding Rate: 65.5 Mpps
- Display: 1.3" Touchscreen LCM
- Power Supply: Internal 450W AC
- Management: UniFi Net-Controller
- Mounting: 1U Rackmount
- Dimensions: 442.4 × 285.4 × 43.7 mm
- Weight: 4.3 kg
- Warranty: 1 Year
*A 24-port, Layer 3 switch capable of high-power PoE++ output

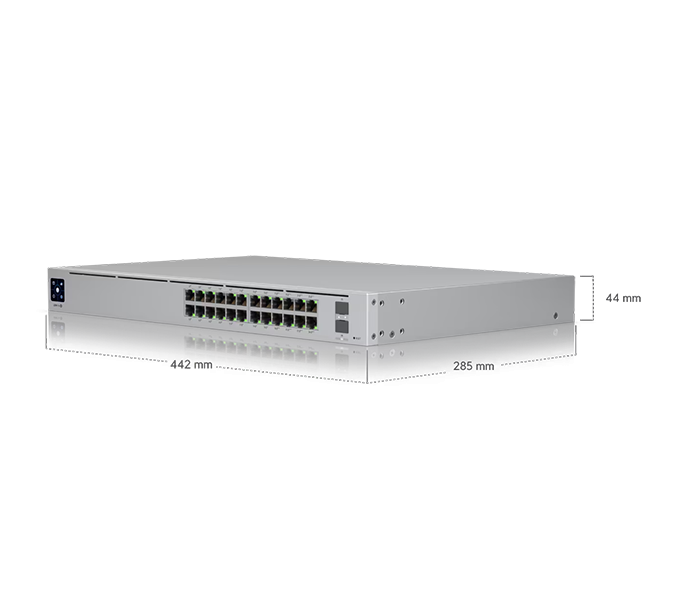

- Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
*Port Layout
-1 GbE RJ45: 24 (16 PoE+; 8 PoE++) (1G/100M/10M)
-10G SFP+: 2 (10G/1G)
-Max. PoE Output: Up to PoE++
-Total PoE Availability: 400W
-Redundancy: DC Power Backup
-Form Factor: Rack mount (1U)
-Switching Capacity: 88 Gbps
-Total Non-Blocking Throughput: 44 Gbps
-Forwarding Rate: 65 Mpps
-Supported VLANs: 1,000
-MAC Address Table Size: 16,000
-IPv4 Static Routes: 2
-Packet Buffer Size: 2 MB
*Access Lists
-IPv4: 128
-MAC: 128
*PoE Ports
-PoE+: 16
-PoE++: 8
*Max. PoE Wattage per Port by PSE
-PoE: 15.4W
-PoE+: 30W
-PoE++: 60W
*Max. Power Consumption
- 50W (Excluding PoE Output)
- 450W (Including PoE Output)
-Power Method
(1) Universal input, 100: AC input
-Management: Ethernet AR
-UniFi Network: Version 5.10.5 and later
Brand
Ubiquiti
