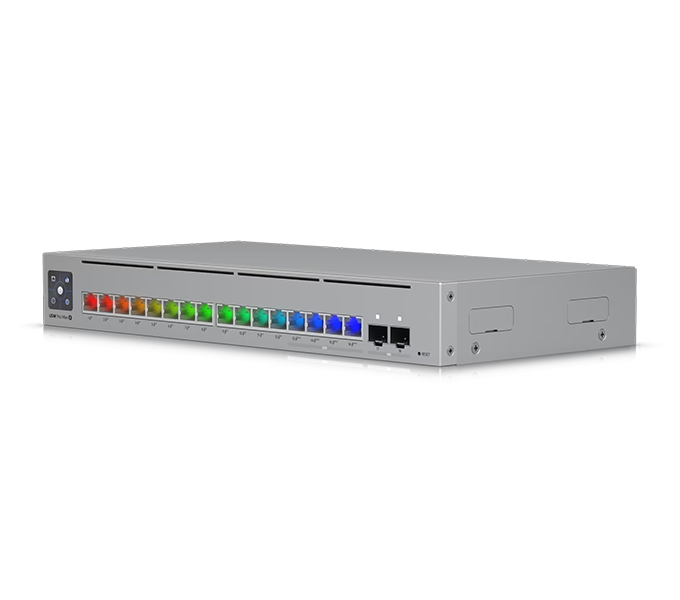

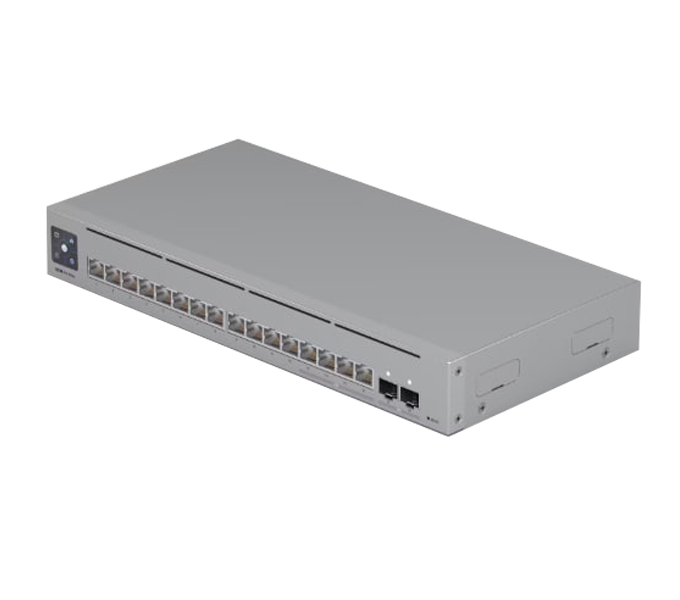

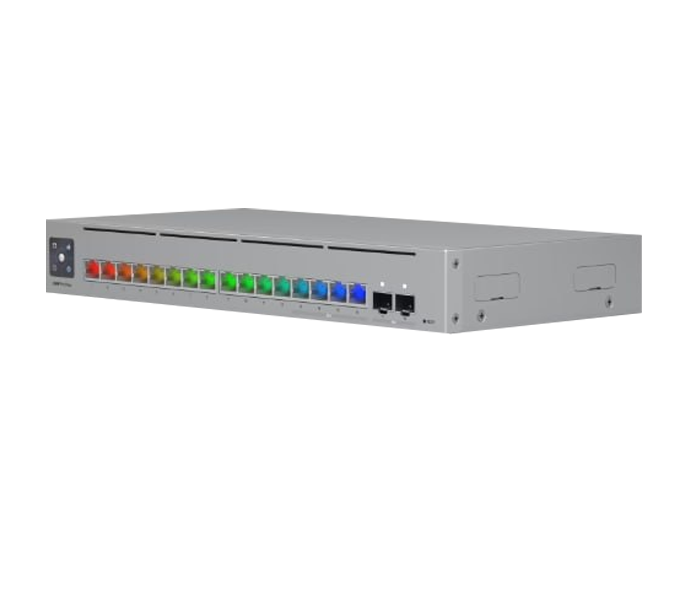

Ubiquiti UniFi Layer 3 Etherlighting switch with 8 (12) GbE, (4) 2.5 GbE, and (2)(USW-Pro-Max-16-EU)
USW-015
----------------------------
-Ports: 16 × RJ45 Ethernet
*12 × 1GbE RJ45
*4 × 2.5GbE RJ45
- Uplink: 2 × 10G SFP+ Ports
- Layer: Layer 3 Managed Switch
- Switching Capacity: 84 Gbps
- Non-Blocking Throughput: 42 Gbps
- Forwarding Rate: 62 Mpps
- Etherlighting™: Yes
- Display: 1.3" Touchscreen LCM
- Power: USB-C External Adapter (25W Max)
- Management: UniFi Net- Controller
- Mounting: Desk/wall/ 1U rack/kit

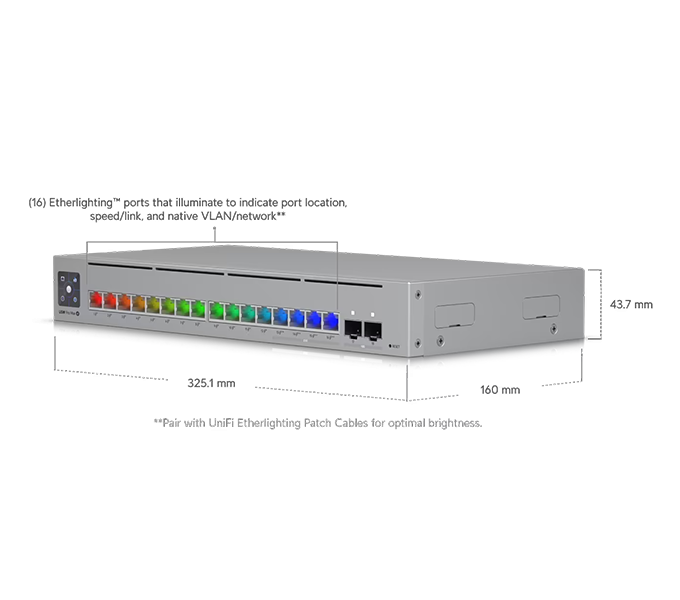

- Dimensions: 325.1 × 160 × 43.7 mm
- Weight: 1.95 kg
- Warranty: 1 Year

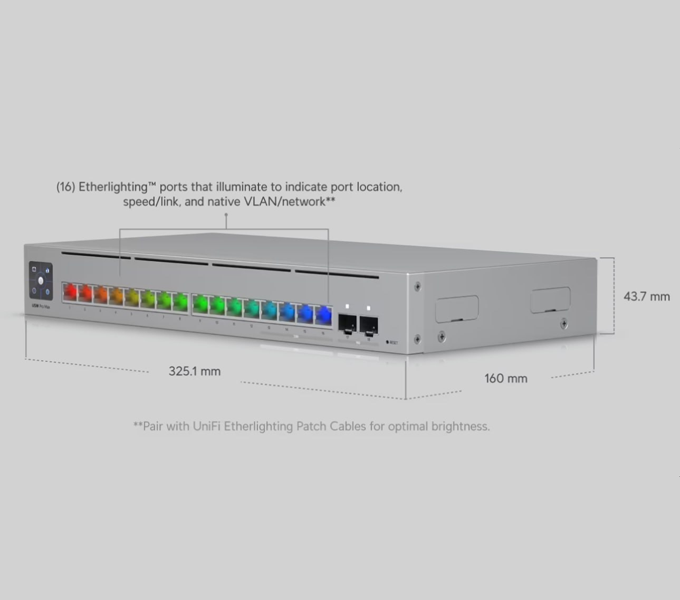

-Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

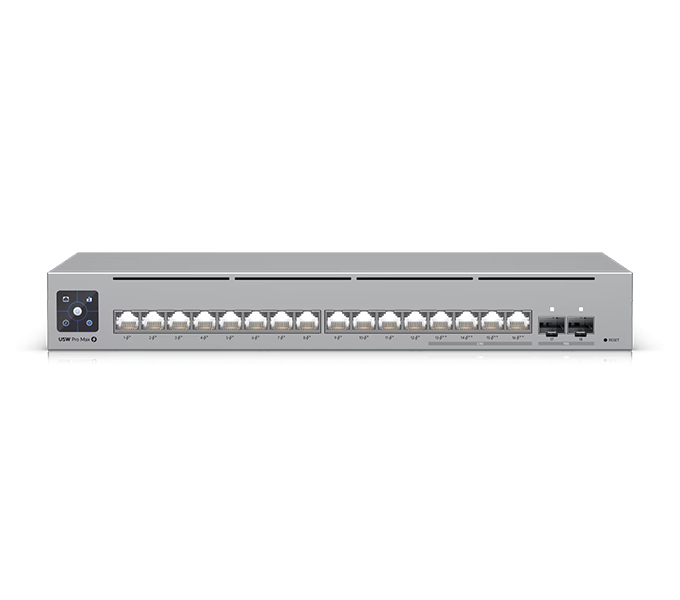

*Port Layout
-1 GbE RJ45: 12 (1G/100M/10M)
-2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
-10G SFP+: 2 (10G/1G)

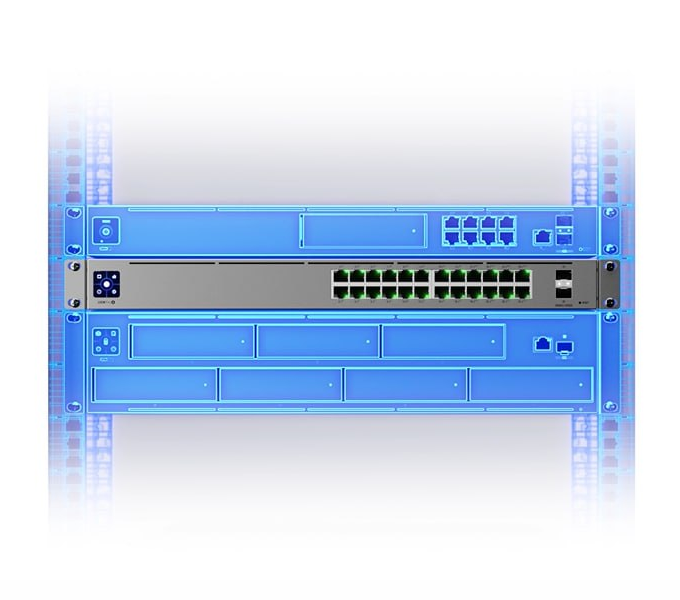

*Form Factor: Rack mount (1U), desktop, wall
-Etherlighting™: Yes
-Switching Capacity: 84 Gbps
-Total Non-Blocking Throughput: 42 Gbps
-Forwarding Rate: 62 Mpps
-Supported VLANs: 1,000
-MAC Address Table Size: 16,000
-IPv4 Static Routes: 256
-Packet Buffer Size: 1.5 MB
*Access Lists
-IPv4: 128
-MAC:128
-Max. Power Consumption: 25W
-Power Method: AC/DC Adapter (included)
-Power Input Method: USB Type-C, 5V DC, 5A
-Power Supply: AC/DC, external, 25W
-Management: Ethernet AR
-UniFi Network: Version 8.1.127 and later
-Weight: 1.95 kg (4.3 lb)
Brand
Ubiquiti
