Ubiquiti U7 Pro Outdoor-All-weather IP67 WiFi 7 AP-extended-range AFC 6GHz (Powe: POE+) 1Y
USW-020
----------------------------
- Outdoor Wi-Fi 7 Access Point
- Wi-Fi: Wi-Fi 7 (802.11be)
- Up to 6 GHz (region dependent)
- 6 Streams (2×2 on each band)
- Up to 465 m² (5,000 ft²)
- Clients: 300+ Devices
- Ethernet Port: 1 × 2.5GbE RJ45
- Power: PoE+ (802.3at)
- IP67 / IPX6 Outdoor Rated

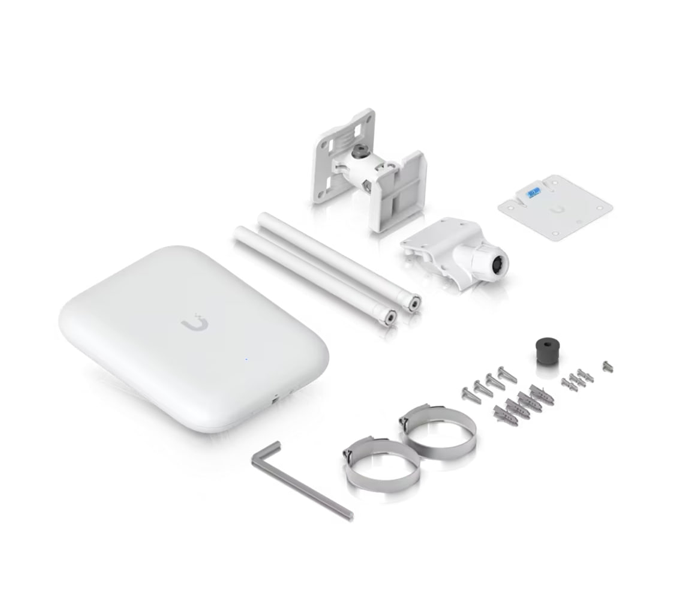

- Wall & Pole Mount (Included)
- Wireless Mesh: Supported
- UniFi Network Controller
- 1Year warranty
-WiFi Standard: WiFi 7
-Spatial Streams: 6
-Coverage Area: 465 m² (5,000 ft²)
-Max. Client Count: 300+
-Uplink: 2.5 GbE

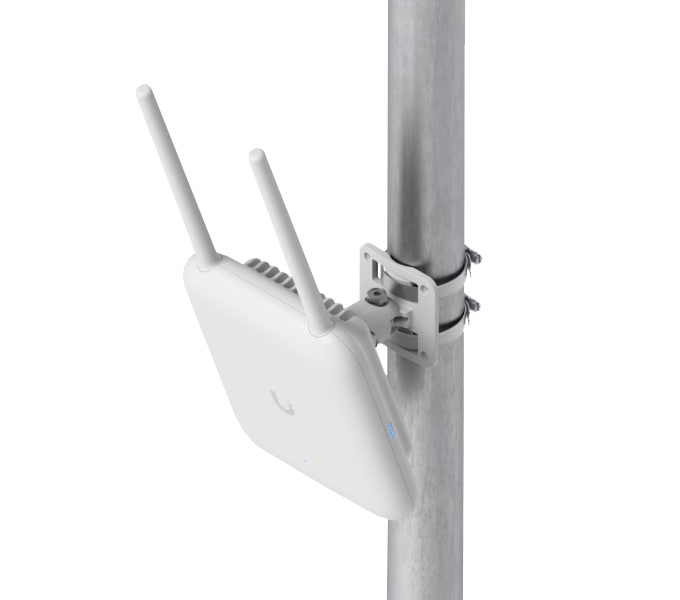

-Mounting: Wall, Pole (Mounts Included)
-Weatherproofing: IPX6 / IP67 (With cable-gland door kit)
-Power Method: PoE+
*Performance
-Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
-Antenna Gain
6 GHz: Directional internal: 10 dBi, 90° x 45°
5 GHz: Directional internal: 11 dBi, 90° x 45° / External omni: 8 dBi, 360° x 15°
2.4 GHz: Directional internal: 8 dBi, 90° x 90°/ External omni: 6 dBi, 360° x 15°
*Supported Data Rates
-802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
-802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
-802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

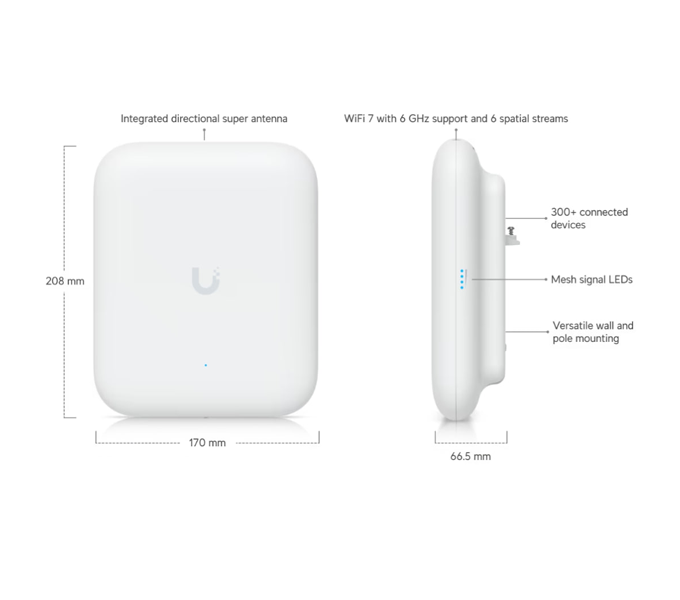

-Dimensions: Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
-With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
*Mobile App: iOS™ version 10.20.2 and later / Android™ version 10.21.7 and later
*Note. 6 GHz operation is supported in these countries. Long-range 6 GHz performance with AFC available in FCC/IC region only.*
